Detailed guidelines on Bar Bending Schedule of Beam

This construction video is based on Beam Reinforcement Details. By watching this video, one will be familiar with Bar Bending Schedule of Beam with some easy to follow processes.

Reinforcement in beam
The role of reinforcement is to withstand tensile stresses because of bending and shear in beams for singly reinforced sections. But some factors like architectural reasons or basement floors can limit the depth of section. Therefore, the beam section is designed as doubly reinforced to withstand tensile and compressive stresses and delivered with reinforcement in compression face.

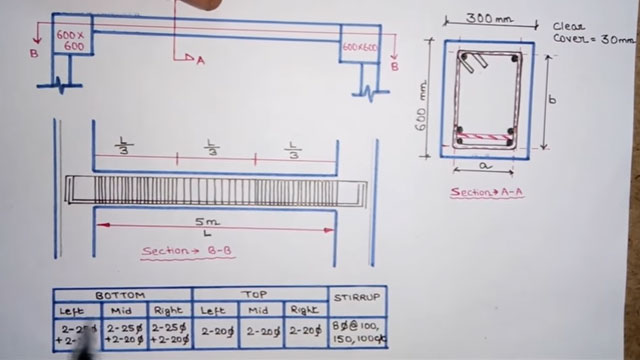

Bar Bending Schedule for RCC Beam
Bar bending schedule is used to make the reinforcement calculation toward reinforced concrete beam. It presents the details of reinforcement cutting length, type of bends and bend length.

The following article will provide you more information on Bar Bending Schedule For RCC Beam.
