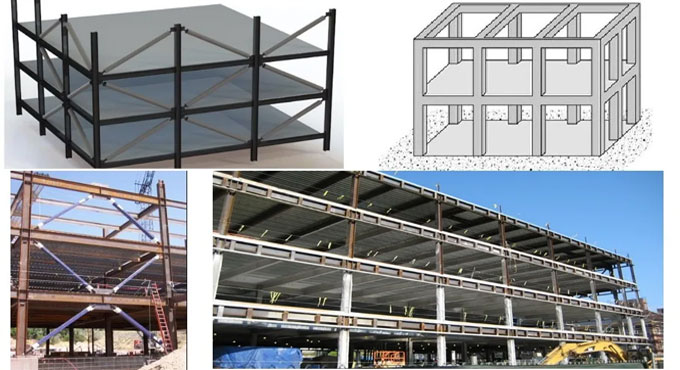

Comprehensive Analysis of Moment Resisting Frames and Lateral Load Distribution in Structural Engineering
Structural engineering is a field dedicated to the design and analysis of safe and efficient structures capable of withstanding various types of loads. Among the critical considerations in structural design is the ability to resist lateral loads, such as wind, seismic forces, and other horizontal pressures.
Understanding Moment Resisting Frames
Moment Resisting Frames (MRFs) are structural systems designed to resist lateral loads by utilizing the moment resistance developed in their frame members. These frames are commonly employed in high-rise buildings, bridges, industrial facilities, and other structures where stability against lateral forces is paramount.
The primary mechanism by which MRFs resist lateral loads is through the development of bending moments in the frame elements, typically beams and columns. By providing sufficient stiffness and strength in these members, MRFs can effectively transfer lateral loads as bending moments throughout the structure, thereby mitigating the effects of lateral forces.
Analytical Methods for Moment Resisting Frames
Analyzing MRFs involves the application of various analytical methods to ensure structural integrity and performance under different loading conditions. Some of the key analytical methods employed in the analysis of Moment Resisting Frames include:
1. Static Analysis: Static analysis involves determining the internal forces and moments within the frame under static loading conditions. Equilibrium equations and structural analysis software are used to calculate the distribution of forces and moments throughout the structure.
2. Dynamic Analysis: Dynamic analysis considers the dynamic response of the structure to time-varying loads, such as seismic forces or wind gusts. Modal analysis, response spectrum analysis, and time history analysis are common techniques used to evaluate the dynamic behavior of MRFs and assess their performance under extreme loading scenarios.
3. Finite Element Analysis (FEA): Finite Element Analysis is a powerful numerical method used to discretize complex structures into smaller, more manageable elements. FEA allows engineers to simulate the behavior of MRFs under various loading conditions and assess factors such as stress distribution, deformation, and stability.
4. Pushover Analysis: Pushover analysis, also known as nonlinear static analysis, is used to evaluate the performance of structures under increasing levels of lateral loading. This method provides valuable insights into the structural response and deformation capacity of MRFs, particularly in seismic design.
Lateral Load Distribution in Moment Resisting Frames
Effective distribution of lateral loads within MRFs is essential to ensure uniform response and prevent localized failures. Several factors influence the distribution of lateral loads within MRFs:
1. Frame Geometry and Configuration: The layout and configuration of the frame play a significant role in lateral load distribution. Irregularities or discontinuities in the frame geometry may lead to uneven load distribution and potential weak points in the structure.
2. Member Stiffness and Strength: The stiffness and strength of individual frame members influence their ability to resist lateral loads and distribute them effectively. Stiffer members experience lower deflections and higher forces, leading to more uniform load distribution within the frame.
3. Connection Design and Detailing: Connections between frame members must be designed to transfer forces and moments efficiently while maintaining structural integrity and stiffness. Proper connection detailing is crucial to prevent premature failure and ensure load transfer efficiency.
4. Diaphragm Action: Diaphragms, such as floor slabs or roof decks, contribute to lateral load distribution by transferring forces to the vertical elements of the frame. Proper design and detailing of diaphragms are essential for enhancing overall stability and stiffness.
5. Shear Wall Interaction: In some cases, shear walls may be incorporated into MRFs to enhance lateral load resistance. The interaction between shear walls and frame members affects load distribution and structural behavior and must be carefully considered in the design process.
Design Considerations for Moment Resisting Frames
Designing MRFs requires careful consideration of various factors to ensure structural safety, efficiency, and performance. Some key design considerations include:
1. Code Compliance: MRFs must comply with relevant building codes and standards governing structural design, including provisions for lateral load resistance and load combinations. Engineers must ensure that the design meets or exceeds the specified code requirements to guarantee structural safety and regulatory compliance.
2. Material Selection: The selection of appropriate materials, such as steel, reinforced concrete, or composite materials, is crucial for achieving the desired performance and durability of MRFs. Engineers must consider factors such as material strength, stiffness, and corrosion resistance when selecting materials for frame construction.
3. Seismic Design: In regions prone to seismic activity, MRFs must be designed to withstand the effects of earthquakes and ground motion. Seismic design considerations include ductility, redundancy, and energy dissipation mechanisms to ensure the structure can withstand seismic forces without catastrophic failure.
4. Foundation Design: The foundation system supporting MRFs must be designed to accommodate the lateral loads transferred from the structure and provide adequate stability and stiffness. Foundation design considerations include soil conditions, bearing capacity, and settlement analysis to ensure the foundation can support the imposed loads without excessive settlement or failure.
5. Serviceability Criteria: In addition to strength and stability, MRFs must also satisfy serviceability criteria related to deflection, vibration, and other factors affecting occupant comfort and functionality. Engineers must consider these criteria during the design process to ensure the structure meets the desired performance objectives.
Conclusion
Moment Resisting Frames are integral components of modern structural engineering, providing robust resistance to lateral loads and ensuring the safety and stability of buildings and infrastructure. Analyzing MRFs and distributing lateral loads within these structures require a comprehensive understanding of structural behavior, analytical methods, and design considerations.
To learn more, watch the following video tutorial.
Video Source: Civil Engineer Tonmoy Maity
By employing advanced analytical techniques, adhering to best practices in design and construction, and considering factors such as frame configuration, member stiffness, connection detailing, and material selection, engineers can optimize the performance and efficiency of MRFs in a wide range of applications.
Continued research and innovation in the field of structural engineering will further advance our understanding of MRFs and enable the development of more resilient, sustainable, and cost-effective structural systems to meet the evolving challenges of the built environment.
