Beam Bridges: A Comprehensive Guide to Types, Works, and Pros & Cons
In the realm of civil engineering and infrastructure, bridges stand as remarkable symbols of human innovation and connectivity. Among the various types of bridges, the beam bridge holds a distinct place for its simplicity, versatility, and effectiveness.
In this detailed exploration, we will dive deep into the world of beam bridges, uncovering their types, how they work, advantages, disadvantages, and the essential properties that make them a cornerstone of bridge construction.
Understanding Beam Bridges
A beam bridge, also known as a girder bridge, is one of the simplest and oldest types of bridge. It consists of horizontal beams, often made of steel, concrete, or wood, supported by piers or abutments at both ends. These beams bear the load and distribute it to the supporting piers, allowing for the safe passage of vehicles, pedestrians, and even trains.

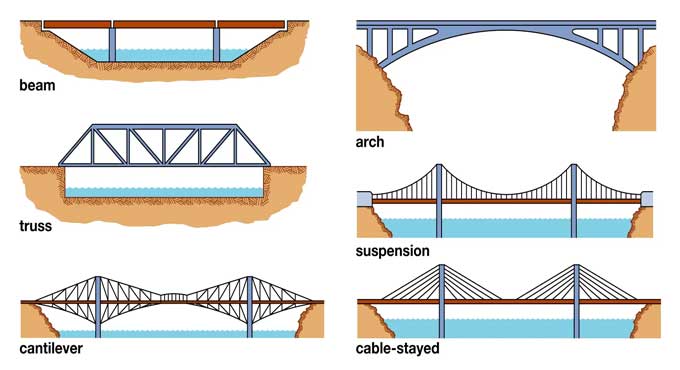

Types of Beam Bridges: A Variety of Designs
1. Simply Supported Beam Bridge: This is the most common type of beam bridge, featuring horizontal beams (girders) that rest on piers or abutments at both ends. The beams simply "sit" on the supports, distributing the load to the piers. This type is suitable for shorter spans and moderate loads.
2. Cantilever Beam Bridge: In this design, the beams extend beyond their supports, projecting from one or both sides of a pier. The central portion of the bridge is suspended between the cantilevers. This design allows for longer spans without the need for additional piers in the middle.
3. Continuous Beam Bridge: This type comprises multiple spans, with each span supported by piers. Unlike a simply supported beam bridge, the load is distributed across several beams and piers. This design is used for longer distances and offers greater flexibility in terms of load distribution.
4. Tied Arch Beam Bridge: While resembling a traditional beam bridge, this type incorporates an arch element. The arch and beams are connected, creating additional support and distributing the load more efficiently. Tied arch beam bridges are known for their aesthetic appeal and can be found in various settings.
5. Truss Beam Bridge: This type incorporates truss structures, which are frameworks composed of triangular elements. Truss beam bridges enhance the bridge's load-bearing capacity and are commonly used for longer spans.
6. Box Beam Bridge: In this design, the beam is hollow or box-shaped. The enclosed structure adds strength and stability, allowing the bridge to carry heavier loads over longer distances.
Working of Beam Bridges: Load Distribution and Support
The functioning of a beam bridge hinges on the principles of load distribution and support:
1. Load Distribution: As weight is applied to the bridge (from vehicles, pedestrians, or trains), the horizontal beams (girders) bear the load. The load is then transmitted through the beams to the supporting piers or abutments.
2. Supporting Piers: The piers, strategically positioned beneath the girders, transfer the load from the beams into the ground. The foundation of the piers ensures that the load is distributed safely without causing structural damage.
3. Load Distribution: As vehicles, pedestrians, or trains cross the bridge, the load is transmitted to the beams. These beams then disperse the load to the supporting piers or abutments, which transfer the load to the ground.
4. Pier Placement: The spacing and placement of piers or abutments depend on the span length and the load-bearing capacity of the beams. Engineers carefully calculate these factors to ensure safe load distribution.
Advantages of Beam Bridges: Efficiency and Simplicity
1. Simplicity and Cost-Effectiveness: Beam bridges are relatively straightforward to design and construct. Their simple design contributes to reduced construction costs, making them an economical choice for shorter spans.
2. Quick Construction: Due to their uncomplicated design, beam bridges can be built relatively quickly. This minimizes disruption to traffic and surrounding communities, making them suitable for urban areas.
3. Versatility: Beam bridges can accommodate various types of traffic, from pedestrians and bicycles to vehicles and trains. Their load-bearing capacity can be tailored to the specific requirements of the transportation mode.
4. Low Maintenance: With fewer moving parts and simpler components, beam bridges generally require less maintenance compared to more complex bridge types. This characteristic contributes to their long-term cost-effectiveness.
5. Aesthetic Appeal: Beam bridges often have a clean and straightforward design, making them aesthetically pleasing and compatible with various surroundings.
6. Environmental Impact: Their simpler construction process and reduced materials usage can lead to a smaller environmental footprint compared to more complex bridge types.
Disadvantages of Beam Bridges: Limitations and Challenges
1. Limited Span Length: While beam bridges are effective for shorter spans, they have limitations in terms of span length. For longer distances, other bridge types like arch or suspension bridges might be more appropriate.
2. Restricted Navigation: In waterways, beam bridges may limit the size and type of vessels that can pass underneath due to their lower clearance. This can affect navigation and shipping in certain areas.
3. Terrain Limitations: Beam bridges require stable and solid ground for their supporting piers. In areas with challenging terrains or variable soil conditions, building appropriate foundations can be more complex.
4. Inflexibility: Beam bridges are less adaptable to changing environments, such as shifting water levels, which can pose challenges in certain locations.
5. Spans and Supports: Longer spans may require additional piers, which can disrupt waterways or increase construction complexity.
Properties of Beam Bridges: Material, Span, and Load
1. Material: Beam bridges can be constructed using various materials, including steel, concrete, and wood. The material choice depends on factors such as span length, load capacity, and environmental conditions.
2. Span Length: The distance between the supporting piers is a critical property that determines the bridge's capacity to carry loads. Longer spans may require additional engineering considerations.
3. Load-Bearing Capacity: The bridge's ability to support weight depends on factors such as the strength of the chosen material, the arrangement of beams, and the span length. Rigorous engineering calculations ensure the bridge's safety and durability.
4. Material Strength: The choice of material impacts the bridge's overall strength and durability. Steel is often chosen for its high tensile strength, while concrete provides stability and resistance to environmental factors.
5. Load Capacity: Engineers determine the load-bearing capacity of a beam bridge through calculations based on the material's strength, span length, and intended use.
6. Span-to-Depth Ratio: This ratio influences the bridge's stability and load distribution. A higher ratio can improve the bridge's performance, especially under heavy loads.
Uses of Beam Bridges: Connecting Communities
1. Urban Infrastructure: Beam bridges find extensive use in urban areas for roadways, pedestrian pathways, and railway crossings. Their simple design and cost-effectiveness make them practical for integrating into urban landscapes.
2. Rural Roads: In less densely populated areas, beam bridges serve as essential links, spanning over rivers, streams, or ditches. They connect communities and enhance accessibility to remote regions.
3. Railway Crossings: Beam bridges are also utilized as reliable crossings for trains, providing a secure pathway for trains to travel over roads and other transportation routes.
4. Pedestrian Bridges: Beam bridges are frequently used to create pedestrian walkways, connecting parks, campuses, and urban areas.
5. Emergency Access: They serve as vital emergency access routes, allowing vehicles and rescue teams to cross over water bodies or obstacles during emergencies.
To learn more, watch the following video tutorial.
Video Source: Rand Raynor
6. Temporary Structures: In construction projects, beam bridges can be temporary structures, facilitating the movement of heavy equipment and materials.
Final Thoughts
Though beam bridges are considered classic, their simplicity and efficiency make them significant assets in the field of bridge construction. These bridges connect towns and allow for the smooth flow of traffic, from rural routes to urban streets.
Civil engineers may make educated judgements regarding adding beam bridges to their projects by studying their kinds, advantages, drawbacks, and features. In an ever-changing scene of modern engineering, the beam bridge's continuing appeal stems from its ability to reconcile practicality, dependability, and cost-effectiveness.
