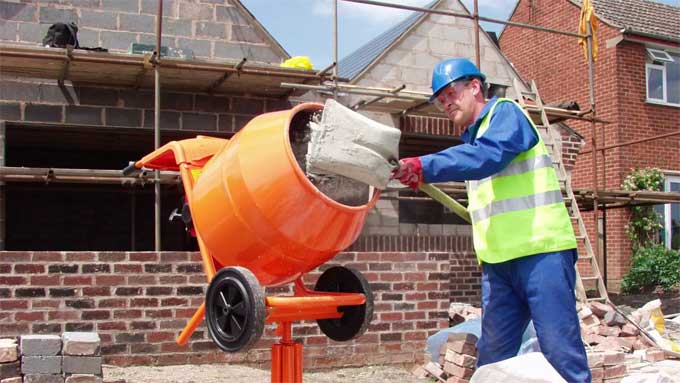

What is a Concrete Mixer: A Comprehensive Guide
Concrete, the backbone of construction, is synonymous with strength and durability. Yet, its journey from a blend of cement, aggregates, and water to a solid structure involves a crucial intermediary step: mixing. This task is where the versatile and indispensable equipment known as a concrete mixer comes into play.
In this comprehensive guide, we delve into the world of concrete mixers, exploring their types, specifications, the process of mixing concrete, and their significance in construction. We will also discuss the advantages, disadvantages, limitations, and the future of concrete mixers.
Understanding Concrete Mixers
A concrete mixer is a specialized machine designed for the efficient mixing of cement, aggregates such as sand, gravel, or crushed stone, and water to create a homogenous concrete mixture. This mixture forms the foundation for countless construction projects, ranging from building foundations and roads to bridges and skyscrapers.
Types of Concrete Mixers
Concrete mixers come in various types, each tailored to specific applications and project requirements. Here are the most common types:
1. Drum Mixer (Tilting Drum Mixer)
A. Design: This type features a rotating drum or container. The drum is tilted to one side for loading materials and then rotated to mix the contents.
B. Applications: Drum mixers are versatile and commonly used in small to medium-sized construction projects.
2. Reversing Drum Mixer
A. Design: Similar to the drum mixer but with the ability to reverse the rotation direction, ensuring thorough mixing.
B. Applications: Ideal for projects requiring precise and consistent mixing, such as precast concrete production.
3. Twin Shaft Mixer
A. Design: Utilizes two horizontal shafts with multiple paddles or blades that counter-rotate, ensuring efficient and uniform mixing.
B. Applications: Suitable for large-scale projects, including commercial and industrial construction.
4. Planetary Mixer
A. Design: Features a rotating, vertically oriented mixing pan with specialized blades. The pan and blades move in multiple directions for thorough mixing.
B. Applications: Commonly used for producing high-strength and speciality concrete mixes, as well as in the production of precast concrete elements.
5. Continuous Mixer
A. Design: Operates on a continuous feeding and mixing process, making it suitable for mass concrete production.
B. Applications: Used in applications where a constant flow of concrete is required, such as in highway construction.
6. Volumetric Mixer
A. Design: These mixers measure and mix materials on-site, allowing for customized batches and minimizing waste.
B. Applications: Ideal for remote or specialized construction projects that require specific mix designs.
Specifications of the Concrete Mixer
Concrete mixers vary in size and capacity, depending on the scale of the construction project. A few key specifications to consider are as follows:
Capacity: Concrete mixers are available in various capacities, from small portable mixers with a few cubic feet of capacity to large industrial mixers capable of producing several cubic yards of concrete in a single batch.
Power Source: Various types of engines can power concrete mixers, including electric motors, gasoline engines, and diesel engines. Depending on the construction site's power sources, the choice may vary.
Drum Speed: The speed at which the drum rotates influences the mixing efficiency. Faster rotation typically results in quicker and more thorough mixing.
Mixing Time: The mixing time required depends on the type of mixer and the specific mix design. It Is essential to adhere to recommended mixing times to achieve the desired concrete quality.
How to Mix Concrete in a Mixer
Mixing concrete in a concrete mixer is a precise process that requires careful attention to detail. Here's a step-by-step guide on how to mix concrete in a typical drum mixer:
Materials Needed:
A. Cement
B. Aggregates (sand, gravel, or crushed stone)
C. Water
D. Safety gear (gloves, safety glasses)
Steps:
Safety First: Before you start, ensure you're wearing the appropriate safety gear, including gloves and safety glasses, to protect yourself from dust and splashes.
Measure Materials: Determine the required proportions of cement, aggregates, and water for your specific mix design. Measure these materials accurately to achieve the desired concrete quality.
Loading the Mixer: Tilt the drum of the mixer and secure it in the loading position. Add the aggregates first, followed by the cement. It's crucial to load the materials in the correct order to ensure proper mixing.
Add Water: Gradually add water to the mix while the drum is rotating. The amount of water needed may vary, so it's essential to follow the mix design specifications.
Mixing: Allow the mixer to run for the recommended mixing time. During this process, the drum rotates, ensuring thorough mixing of the materials. Monitor the consistency of the mix; it should be uniform and free of lumps.
Discharge the Concrete: Once the mixing is complete, tilt the drum to the discharge position and pour the concrete into a wheelbarrow or directly into the construction forms.
Cleaning: After use, clean the mixer thoroughly to prevent hardened concrete from affecting future batches.
The Significance of Concrete Mixers in Construction:
Concrete mixers are indispensable tools in the construction industry for several reasons:
1. Efficiency: Concrete mixers significantly speed up the concrete production process, allowing for the timely completion of construction projects.
2. Consistency: They ensure uniform mixing, resulting in consistent concrete quality throughout the project.
3. Customization: Concrete mixers enable the customization of concrete mixes to meet specific project requirements, including strength, durability, and workability.
4. Cost Savings: Efficient mixing reduces waste and minimizes the need for manual labour, leading to cost savings in both material usage and labour.
Advantages of Concrete Mixers
Concrete mixers offer numerous advantages, making them indispensable in construction:
1. Speed: They expedite the mixing process, saving time and allowing for faster project completion.
2. Consistency: Mixers ensure uniform and consistent concrete quality, reducing the risk of structural issues.
3. Precision: They enable precise control over the mix design, resulting in tailored concrete properties.
4. Reduced Labor: Using mixers reduces the physical effort required for mixing by hand, reducing labor costs and minimizing worker fatigue.
5. Versatility: Various types of mixers cater to a wide range of construction projects, from small residential jobs to large-scale industrial applications.
Disadvantages and Limitations
While concrete mixers offer numerous advantages, they also have some limitations and potential disadvantages:
1. Initial Investment: Acquiring a concrete mixer can be a significant upfront cost, especially for larger, industrial-grade mixers.
2. Maintenance: Regular maintenance is essential to keep mixers in good working condition. Breakdowns and costly repairs can result from neglecting maintenance.
3. Size and Mobility: Large concrete mixers can be challenging to transport to remote or confined construction sites, limiting their usability.
4. Noise and Dust: Mixing concrete can generate noise and dust, which may require additional safety measures and environmental considerations.
To learn more, watch the following video tutorial.
Video Source: hss
The Future of Concrete Mixers
As technology advances, the future of concrete mixers holds the promise of increased efficiency, reduced environmental impact, and improved safety. The following are some potential developments to keep an eye on:
1. Automation: Automation technologies may further streamline the mixing process, reducing the need for manual intervention and improving precision.
2. Environmental Sustainability: The development of more sustainable concrete mixers, such as those powered by renewable energy sources or equipped with advanced emissions control systems, could become more prevalent.
3. Safety Features: Future mixers may incorporate advanced safety features to protect operators and reduce workplace accidents.
4. Smart Integration: Integration with digital technology and data analytics could enhance the monitoring and control of concrete mixing processes, optimizing efficiency and quality.
Final thoughts
In conclusion, concrete mixers are the unsung heroes of the construction industry, facilitating the creation of the concrete structures that form the backbone of our built environment. Their significance, versatility, and advantages far outweigh their limitations.
As technology continues to advance, we can anticipate even more efficient and sustainable concrete mixing solutions, ensuring that the construction projects of the future are built on a strong foundation of innovation and reliability. Whether on a small residential site or a vast industrial project, the role of concrete mixers in shaping our world cannot be overstated.
