All about Headers in Construction: Understanding Their Purpose and Importance
In the realm of construction, every element plays a crucial role in ensuring the stability, strength, and longevity of a structure. Among these elements, headers stand out as essential components that contribute to the overall integrity of a building.
Understanding Headers in Construction
What Is a Header in Construction?

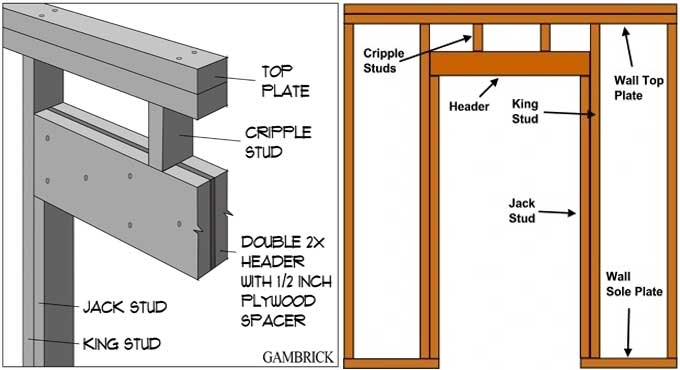

In construction terminology, a header refers to a horizontal structural element positioned above an opening, such as a door or window. This component is typically made of wood, steel, or concrete and serves the primary purpose of distributing the weight of the structure above the opening to the adjacent vertical supports, commonly known as studs or columns.
Headers are integral in load-bearing walls, where they facilitate the transfer of loads from above to the surrounding structure, preventing sagging or collapse. By distributing the load evenly, headers contribute significantly to the stability and safety of a building.
Materials Used in Headers
Headers can be constructed from various materials, each offering unique advantages and characteristics.
Wooden Headers:
1. Common Usage: Wood headers are widely used in residential construction.
2. Advantages: They are cost-effective, readily available, and can be easily cut and shaped on-site.
3. Considerations: The size and type of wood used must adhere to building codes to ensure structural integrity.
Steel Headers:
1. Common Usage: Steel headers are often employed in commercial and industrial construction.
2. Advantages: Steel provides high strength, durability, and resistance to pests and rot.
3. Considerations: Proper installation is crucial to prevent corrosion, and fire-resistant coatings may be necessary.
Concrete Headers:
1. Common Usage: Concrete headers are commonly used in high-rise buildings and structures requiring exceptional strength.
2. Advantages: Concrete offers excellent compressive strength and durability.
3. Considerations: The weight of concrete headers may necessitate additional support, and careful curing is crucial for optimal strength.
Types of Headers
Solid Headers:
1. Description: Solid headers are made from a single piece of material, such as a solid timber beam.
2. Application: Commonly used in smaller openings or where the load is relatively light.
Built-up Headers:
1. Description: Built-up headers are constructed by layering multiple pieces of material, often plywood or dimensional lumber.
2. Application: Used in larger openings or where increased strength is required.
Laminated Veneer Lumber (LVL) Headers:
1. Description: LVL headers consist of thin layers of wood veneer glued together under high pressure.
2. Application: Ideal for applications requiring high strength and dimensional stability.
The Purpose of Headers in Construction
Load Distribution:
One of the primary functions of headers is to distribute the loads from above an opening to the adjacent vertical supports. When doors or windows are installed in a wall, the weight of the structure above the opening is concentrated in that specific area. Without a header, this concentrated load could cause the wall to sag or fail.
Preventing Sagging and Settlement:
Headers play a crucial role in preventing sagging and settlement in structures. The even distribution of weight ensures that the wall remains stable over time, avoiding issues such as uneven floors or misaligned doors and windows.
Creating Openings:
Headers enable the creation of openings for doors, windows, and other architectural features. By providing the necessary structural support, headers allow for design flexibility without compromising the stability of the building.
Supporting Beams:
In some cases, headers serve as supports for beams. While beams primarily bear horizontal loads, headers help distribute the vertical loads imposed by the structure above, ensuring that the weight is efficiently transferred to the foundation.
Difference between Headers and Beams
While headers and beams share similarities, they serve distinct purposes in construction. Understanding the differences between the two is crucial for proper design and construction.
Purpose:
1. Header: The primary purpose of a header is to distribute vertical loads, such as the weight of the structure above an opening, to the adjacent vertical supports.
2. Beam: Beams are horizontal structural elements designed to bear loads primarily in a horizontal direction, such as the weight of floors or roofs.
Orientation:
1. Header: Headers are typically installed horizontally above openings in walls.
2. Beam: Beams are generally oriented horizontally to support the loads they are designed to carry.
Load Distribution:
1. Header: Headers distribute vertical loads and help prevent sagging in walls with openings.
2. Beam: Beams distribute horizontal loads, such as those from floors or roofs, to the vertical supports.
Location:
1. Header: Headers are commonly found above doors, windows, and other openings in walls.
2. Beam: Beams are located throughout a structure to support the weight of floors and roofs.
Construction:
1. Header: Headers are often made of wood, steel, or concrete and are installed in walls.
2. Beam: Beams can be made of various materials, including wood, steel, and concrete, and are found in horizontal applications.
Importance of Headers and Beams in Construction
Structural Integrity:
Both headers and beams are critical components for maintaining the structural integrity of a building. Headers ensure that openings in walls do not compromise the stability of the structure, while beams support the weight of floors and roofs, preventing sagging and collapse.
Design Flexibility:
Headers provide the necessary support to create openings for doors and windows, allowing for design flexibility in architectural layouts. On the other hand, Beams offer flexibility in designing open and expansive spaces within a building.
Load-Bearing Capacity:
Headers and beams are designed to withstand specific loads based on the structural requirements of a building. Proper sizing and installation are essential to ensure that these elements can effectively carry the imposed loads.
Safety Considerations:
The correct installation of headers and beams is crucial for the safety of occupants. Inadequate support can lead to structural failure, compromising the safety and stability of the entire building.
To learn more, watch the following video tutorial.
Video Source: Building Code Tips
Compliance with Building Codes:
Headers and beams must adhere to local building codes and regulations to ensure that the construction meets safety standards. Compliance with these codes is essential for obtaining permits and certifications.
Conclusion
In the intricate world of construction, headers emerge as indispensable components that play a pivotal role in ensuring the structural stability and safety of a building. Understanding their purpose, materials, and differences from beams is essential for architects, engineers, and builders.
Headers not only provide the necessary support for openings but also contribute to the overall design flexibility and integrity of a structure. As the construction industry continues to evolve, headers will remain a fundamental element in creating safe, durable, and aesthetically pleasing buildings.
