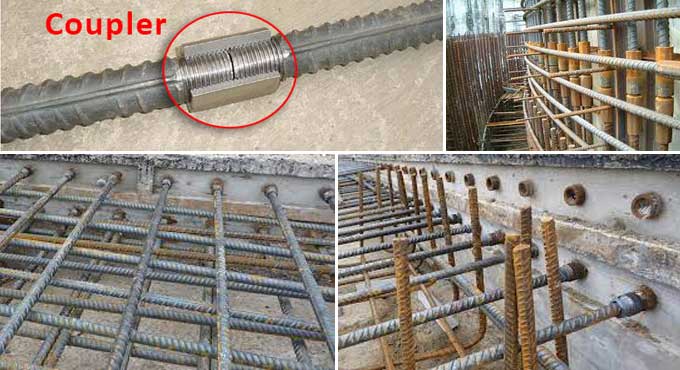

Mechanical Couplers: Enhancing Construction and Beyond
In the realm of construction and engineering, the proper connection of reinforcing bars (rebars) is critical to ensuring the structural integrity and strength of various concrete structures. Traditionally, rebar splicing has been accomplished through the labour-intensive method of lapping rebars, which involves overlapping the bars and tying them together with wire.
However, with advancements in technology, mechanical couplers have emerged as a more efficient and reliable alternative for connecting rebars.
Mechanical couplers are innovative devices that provide a quick, sturdy, and cost-effective solution for rebar splicing. In this article, we will explore the uses, types, advantages, and disadvantages of mechanical couplers, as well as the methods of their application and how they serve as an alternative for lapping rebars.
I. What are Mechanical Couplers?
A mechanical coupler is a device designed to join two rebars together without the need for time-consuming and labour-intensive traditional methods like lapping. It is essentially a threaded sleeve that houses the ends of two rebars and connects them through a mechanical process. These couplers are typically made from high-strength steel and are precisely manufactured to ensure precise alignment and load transfer between the two rebars.
II. Types of Mechanical Couplers
1. Threaded Couplers: Threaded couplers are among the most common types of mechanical couplers. They consist of a cylindrical sleeve with internal threads on both ends, allowing it to be screwed onto the threaded ends of the rebars. Threaded couplers come in various designs, such as parallel threaded couplers, tapered threaded couplers, and positional couplers.
2. Grout-Filled Couplers: Grout-filled couplers are designed to be filled with a special grout material that bonds the rebars together within the sleeve. The grout enhances the load transfer capacity and provides corrosion protection for the rebars.
3. Weldable Couplers: Weldable couplers are particularly useful in pre-fabrication applications. They have end plates that can be welded directly to the rebars, creating a robust connection.
4. Upset Couplers: Upset couplers involve enlarging the ends of the rebars through a process known as upsetting. The enlarged ends are then inserted into the coupler and secured with a locking mechanism.
III. Advantages of Mechanical Couplers
1. Enhanced Structural Integrity: Mechanical couplers provide a full cross-sectional area connection between rebars, ensuring efficient load transfer and maintaining the structural integrity of the concrete element.
2. Time and Labor Savings: Compared to lapping rebars, using mechanical couplers significantly reduces construction time and labour costs, making projects more time-efficient and cost-effective.
3. Reduced Rebar Wastage: Lapping rebars typically require longer bar lengths, resulting in increased wastage. Mechanical couplers eliminate the need for excess length, leading to minimal rebar wastage.
4. Simplified Quality Control: The use of mechanical couplers ensures consistent and reliable connections, reducing the possibility of human error and enhancing the overall quality control of the construction process.
5. Increased Flexibility: Mechanical couplers offer versatility by accommodating various rebar sizes and types, allowing for greater design flexibility in construction projects.
6. Corrosion Resistance: Certain types of mechanical couplers, such as grout-filled couplers, provide an extra layer of protection against corrosion, increasing the lifespan of the structure.
7. Sustainable Construction: Mechanical couplers contribute to sustainable construction practices by reducing material wastage and energy consumption during construction.
IV. Disadvantages of Mechanical Couplers
1. Initial Cost: The initial cost of mechanical couplers can be higher than traditional methods. However, the long-term benefits in terms of time and labour savings often outweigh the initial investment.
2. Skilled Labor Requirement: While mechanical couplers simplify the rebar splicing process, their correct installation still requires skilled labour to ensure proper alignment and load transfer.
3. Space Constraints: In situations with limited space, the use of mechanical couplers might be challenging due to the need for precise alignment and threading.
4. Site Conditions: Adverse weather conditions or environmental factors can hinder the installation of mechanical couplers, potentially leading to project delays.
V. Methods of Application
1. Rebar Cutting: The rebars need to be accurately cut to the required length, ensuring a precise fit within the mechanical couplers.
2. Cleaning and Deburring: Before inserting the rebars into the couplers, the ends must be cleaned and deburred to eliminate any rust, dust, or debris that could compromise the connection.
3. Coupler Installation: Depending on the type of coupler, the rebars are either threaded into the coupler or inserted and secured through welding or locking mechanisms.
4. Grouting: In the case of grout-filled couplers, the voids within the sleeve are filled with grout, enhancing the bond between the rebars.
VI. Mechanical Couplers as an Alternative for Lapping Rebars
Mechanical couplers have gained popularity as a superior alternative to lapping rebars due to the aforementioned advantages they offer. While lapping rebars require more significant labour efforts and can be cumbersome in tight spaces, mechanical couplers streamline the process and improve construction efficiency.
Moreover, the elimination of overlapping rebars reduces the risk of congestion in concrete, which can lead to inadequate consolidation and potentially compromise the structure's strength.
VII. Uses of Mechanical Couplers in Various Fields
1. Civil Engineering: Mechanical couplers find extensive use in civil engineering projects, including high-rise buildings, bridges, tunnels, and dams, where the strength and integrity of the structures are paramount.
2. Infrastructure Development: In infrastructure development projects, such as roads, highways, and airports, mechanical couplers play a crucial role in reinforcing concrete elements to withstand heavy loads and traffic.
3. Pre-fabrication and Modular Construction: Mechanical couplers are especially useful in pre-fabrication and modular construction, where the off-site assembly of components demands precise and efficient rebar splicing.
4. Industrial Structures: Mechanical couplers are employed in industrial structures, such as warehouses and factories, where the durability and reliability of the building's framework are vital for safe operations.
5. Seismic Retrofitting: In regions prone to earthquakes, mechanical couplers are used for retrofitting existing structures to enhance their seismic resistance, safeguarding lives and property.
VIII. Innovations and Research in Mechanical Couplers
The construction industry continues to witness advancements in mechanical coupler technology. Researchers and manufacturers are constantly exploring ways to improve coupler designs, enhance corrosion resistance, and expand the range of rebar sizes that can be accommodated. Additionally, efforts are being made to develop couplers that facilitate easy inspection and monitoring of connections, ensuring long-term safety and durability.
IX. Environmental Impact and Sustainability
The adoption of mechanical couplers in construction projects contributes to sustainable building practices by reducing construction waste and energy consumption. By minimizing rebar wastage and eliminating the need for wire-tying, these couplers contribute to the efficient use of materials and a smaller carbon footprint for construction projects.
To learn more, watch the following video tutorial.
Video Source: BarusCorporation
Conclusion
Mechanical couplers have revolutionized the construction industry by offering an efficient and reliable method for connecting rebars.
With their ability to provide enhanced structural integrity, reduce construction time and labour costs, ensure consistency in quality control, and contribute to sustainable building practices, they have become an indispensable component in modern construction projects.
As technology continues to advance, mechanical couplers will likely remain a staple in the construction industry, contributing to the development of safer, more sustainable, and robust concrete structures around the world. Embracing the potential of mechanical couplers can drive construction practices towards a more efficient and environmentally conscious future.
